PSM-66 RIV-05 is a special resin for carrier boards. The resin doesn't contain solvents or other harmful volatiles, and is a high-performance resin with high TG and low CTE, excellent high-temperature resistance and resistance to hot and cold shocks, high reliability, and high chemical resistance; it has excellent hardness and excellent bonding strength.
Fields of application
PSM-66 RIV-05 plug hole resin is used in high TG products such as high multilayer HDI, POFV and IC-Substrate PCB CSP.

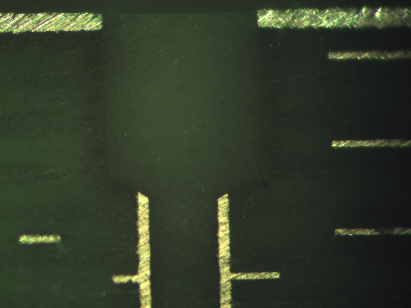

Illustration of plug holes for each type of plate
 |  |  |
 |  |  |
Technical Specifications
| NO. | Physical indicators | Test Methods | Reference Standard | Test results |
| 1 | Product Appearance | visual assessment | / | Yellowish white |
| 2 | Solid Content | Thermal Weightlessness | GB 1725-79 | 100% |
| 3 | Tg | TMA（℃） | IPC-TM-650 2.4.24 | 165-175 |
| 4 | CTE | TMA（＜Tg）α1（ppm） | IPC-TM-650 2.4.24 | 30-40 |
| TMA（＞Tg）α2（ppm） | IPC-TM-650 2.4.24 | 80-90 | ||
| 5 | Water Absorption | Gravimetric method（%） | IPC-TM-650 2.6.2.1 | <0.1 |
| 6 | Hardness | Pencil method | IPC-TM-650 2.4.27.2 | ≥7H |
| 7 | Insulation Resistance | Voltage method（Ω） | GB/T 10064-2006 | 1-3*10¹³ |
| 8 | Adhesion | Baige +3m tape method | IPC-TM-650 2.4.1 | 100/100 |
| 9 | Heat-proof material | Reflow soldering 260℃.60sec.3 cycles | IPC-TM-650 2.1.1.2 | Pass |
Thermal Stress 288℃.10sec.5 cycles | IPC-TM-650 2.6.8 | Pass | ||
| 10 | Chemical corrosion resistance | 10wt% NaOH 25℃*30min | IPC-TM-650 2.3.4.3 | Pass |
| 11 | TCT test | -50℃/30minó150℃/30min | IPC-TM-650 2.6.7.2 | Pass |
| 1000cycles | ||||
| 12 | Viscosity（25℃） | VISCOMETER TV-06 | - | 500-700 |
